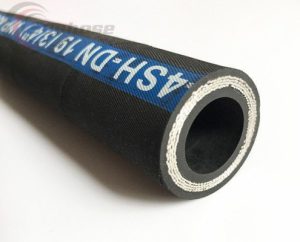

Hydraulic Hose DIN EN 856 4SH

Hydraulic Hose DIN EN 856 4SH very high pressure, pulsating applications used for petroleum-based hydraulic fluids. Wire wrapped in alternating directions, and oil and weather resistant synthetic rubber cover.4sh high-pressure hose.

Liên hệ

Tube: Oil-resistant synthetic rubber.

Reinforcement: Four alternating layers of spiraled high-tensile steel wire.

Cover: Abrasion and weather-resistant synthetic rubber.

Application: Very high pressure, pulsating applications used for petroleum-based hydraulic fluids.

Temp. Range. : -40°C To +100°C (-40°F To +212°F)

Hotline: 0917 897 998

Danh mục: RUBBER HOSES

Mô tả chi tiết
Thông tin liên hệ

Specification of Hydraulic Hose DIN EN 856 4SH

Part No.	SIZE		SAE	I.D		W.D		O.D		W. P		P.P		B.P		min B.R		W.T
#	mm	inch	Dash	Min	Max	Min	Max	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
SH4SH19	19	3/4″	-12	18.6	19.8	27.6	29.2	31.4	33	42	6090	84	12180	168	24360	11.02	280	1.70
SH4SH25	25	1″	-16	25	26.4	34.4	36	37.5	39.9	38	5510	76	11020	152	22040	13.39	340	2.50
SH4SH32	31.5	1-1/4″	-20	31.4	33	40.9	42.9	43.9	47.1	32.5	4710	65	9425	130	18850	18.11	460	3.00
SH4SH38	38	1-1/2″	-24	37.7	39.3	47.8	49.8	51.9	55.1	29	4205	58	8410	116	16820	22.05	560	3.60
SH4SH51	51	2″	-32	50.4	52	62.2	64.2	66.5	69.7	25	3625	50	7250	100	14500	27.56	700	5.00
