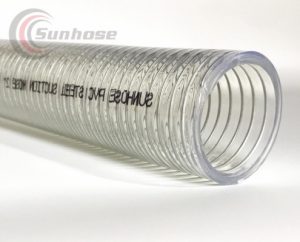

PVC Steel Wire Reinforced Hose
PVC steel wire reinforced hose is widely used for suction and discharge of water, oil, and powder in the factory, agriculture, engineering, and sanitation lines. In shipyards, industries, buildings, agricultural, and industrial machinery.
Alias: Thunder Hose, PVC Spring Hose, PVC steel suction hoses, steel Spiral Reinforced PVC Suction Hoses, water suction hoses with steel wire, PVC Suction and discharge hoses,steel-reinforced PVC hoses.
Liên hệ
- Tube: Very Flexible And Smooth, Transparent Plasticized PVC.
- Reinforcement: Shock Resistant Galvanized Steel Spiral Wire.
- Cover: Crushing, Abrasion, And Weather Resistant, Smooth Outside.
- Application: For Suction And Delivery Of Water, Mineral Water, Fruit juices, Liquids etc. In shipyards, Industries, Buildings, Agricultural, And Industrial Machineries.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of PVC Steel Wire Hose
| PART NO. | SIZE | I.D. | O.D. | LENGTH | W.P. | B.P. | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | Bar | PSI | Bar | PSI | kg/m |
| SHSS0815 | 5/16″ | 8 | 15 | 100 | 8 | 120 | 24 | 360 | 0.20 |
| SHSS0914 | 3/8″ | 9 | 14 | 100 | 6 | 90 | 18 | 270 | 0.15 |
| SHSS0916 | 3/8″ | 9 | 16 | 100 | 8 | 120 | 24 | 360 | 0.21 |
| SHSS1015 | 3/8″ | 10 | 15 | 100 | 6 | 90 | 18 | 270 | 0.16 |
| SHSS1016 | 3/8″ | 10 | 16 | 100 | 8 | 120 | 24 | 360 | 0.20 |
| SHSS1217 | 1/2″ | 12 | 17 | 100 | 6 | 90 | 18 | 270 | 0.17 |
| SHSS1319 | 1/2″ | 13 | 19 | 100 | 8 | 120 | 24 | 360 | 0.23 |
| SHSS1521 | 5/8″ | 15 | 21 | 100 | 6 | 90 | 18 | 270 | 0.25 |
| SHSS1623 | 5/8″ | 16 | 23 | 50 | 6 | 90 | 18 | 270 | 0.33 |
| SHSS1924 | 3/4″ | 19 | 24 | 50 | 5 | 75 | 15 | 225 | 0.25 |
| SHSS1926 | 3/4″ | 19 | 26 | 50 | 6 | 90 | 18 | 270 | 0.38 |
| SHSS2529 | 1″ | 25 | 29 | 50 | 4 | 60 | 12 | 180 | 0.26 |
| SHSS2530 | 1″ | 25 | 30 | 50 | 4 | 60 | 12 | 180 | 0.35 |
| SHSS2533 | 1″ | 25 | 33 | 50 | 5 | 75 | 16 | 225 | 0.55 |
| SHSS3236 | 1-1/4″ | 32 | 36 | 50 | 3 | 45 | 9 | 135 | 0.40 |
| SHSS3238 | 1-1/4″ | 32 | 38 | 50 | 3 | 45 | 10 | 135 | 0.50 |
| SHSS3239 | 1-1/4″ | 32 | 39 | 50 | 3 | 45 | 10 | 135 | 0.60 |
| SHSS3240 | 1-1/4″ | 32 | 40 | 50 | 5 | 75 | 16 | 225 | 0.70 |
| SHSS3842 | 1-1/2″ | 38 | 42 | 50 | 3 | 45 | 9 | 135 | 0.50 |
| SHSS3844 | 1-1/2″ | 38 | 44 | 50 | 3 | 45 | 9 | 135 | 0.60 |
| SHSS3845 | 1-1/2″ | 38 | 45 | 50 | 3 | 45 | 9 | 135 | 0.80 |
| SHSS3848 | 1-1/2″ | 38 | 48 | 50 | 5 | 75 | 15 | 225 | 1.00 |
| SHSS4550 | 1-3/4″ | 45 | 50 | 50 | 3 | 45 | 9 | 135 | 0.60 |
| SHSS4552 | 1-3/4″ | 45 | 52 | 50 | 3 | 45 | 9 | 135 | 0.80 |
| SHSS4556 | 1-3/4″ | 45 | 56 | 50 | 5 | 75 | 15 | 225 | 1.33 |
| SHSS4854 | 1-7/8″ | 48 | 54 | 50 | 3 | 45 | 9 | 135 | 0.81 |
| SHSS4856 | 1-7/8″ | 48 | 56 | 50 | 3 | 45 | 9 | 135 | 1.00 |
| SHSS4859 | 1-7/8″ | 48 | 59 | 50 | 5 | 75 | 15 | 225 | 1.40 |
| SHSS5055 | 2″ | 50 | 56 | 50 | 3 | 45 | 9 | 135 | 0.89 |
| SHSS5057 | 2″ | 50 | 57 | 50 | 3 | 45 | 9 | 135 | 1.00 |
| SHSS5060 | 2″ | 50 | 60 | 50 | 3 | 45 | 9 | 135 | 1.40 |
| SHSS5062 | 2″ | 50 | 62 | 50 | 5 | 75 | 15 | 225 | 1.60 |
| SHSS5865 | 2-5/16″ | 58 | 65 | 30 | 2 | 30 | 6 | 90 | 1.20 |
| SHSS5869 | 2-5/16″ | 58 | 69 | 40 | 4 | 60 | 12 | 180 | 1.67 |
| SHSS6472 | 2-1/2″ | 64 | 72 | 30 | 2 | 30 | 6 | 90 | 1.50 |
| SHSS6475 | 2-1/2″ | 64 | 75 | 30 | 2 | 30 | 6 | 90 | 2.00 |
| SHSS6478 | 2-1/2″ | 64 | 78 | 30 | 4 | 60 | 12 | 180 | 2.50 |
| SHSS7684 | 3″ | 76 | 84 | 30 | 2 | 30 | 6 | 90 | 1.60 |
| SHSS7687 | 3″ | 76 | 87 | 30 | 2 | 30 | 6 | 90 | 2.50 |
| SHSS7690 | 3″ | 76 | 90 | 30 | 4 | 60 | 12 | 180 | 3.00 |
| SHSS090102 | 3-1/2″ | 90 | 102 | 20 | 2 | 30 | 6 | 90 | 3.00 |
| SHSS090108 | 3-1/2″ | 90 | 108 | 20 | 4 | 60 | 12 | 180 | 4.50 |
| SHSS102112 | 4″ | 102 | 112 | 20 | 2 | 30 | 6 | 90 | 2.80 |
| SHSS102114 | 4″ | 102 | 114 | 20 | 2 | 30 | 6 | 90 | 3.10 |
| SHSS102120 | 4″ | 102 | 120 | 20 | 4 | 58 | 12 | 174 | 4.80 |
| SHSS110123 | 4-3/8″ | 110 | 123 | 20 | 2 | 30 | 6 | 90 | 3.60 |
| SHSS110127 | 4-3/8″ | 110 | 127 | 20 | 3 | 45 | 9 | 135 | 4.80 |
| SHSS117133 | 4-5/8″ | 117 | 133 | 10 | 3 | 45 | 9 | 135 | 5.50 |
| SHSS127143 | 5″ | 127 | 143 | 10 | 3 | 45 | 9 | 135 | 6.00 |
| SHSS140156 | 5-1/2″ | 140 | 156 | 10 | 3 | 45 | 9 | 135 | 6.50 |
| SHSS152170 | 6″ | 152 | 170 | 10 | 2 | 30 | 6 | 90 | 8.50 |
| SHSS160176 | 6-5/16″ | 160 | 176 | 10 | 2 | 30 | 6 | 90 | 8.50 |
| SHSS180196 | 7″ | 180 | 196 | 10 | 2 | 30 | 6 | 90 | 8.50 |
| SHSS200224 | 8″ | 200 | 224 | 10 | 2 | 30 | 6 | 90 | 12.00 |
| SHSS254286 | 10″ | 254 | 286 | 10 | 2 | 30 | 6 | 90 | 20.00 |

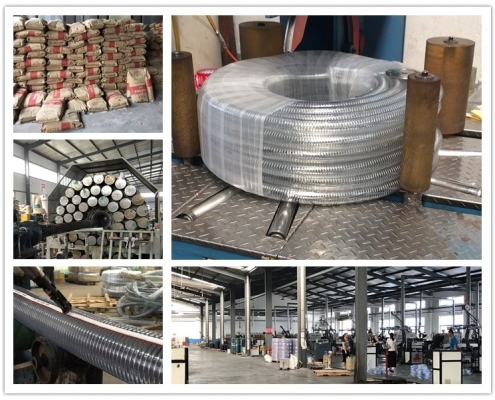

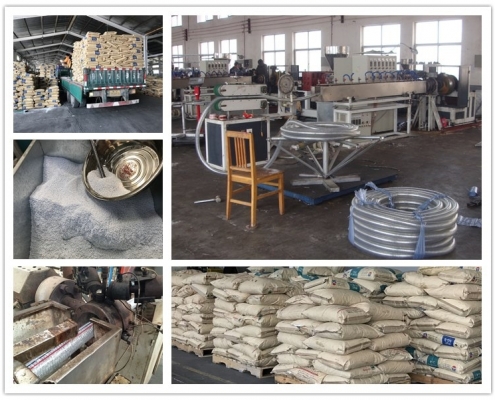

Material and Production of PVC Spring Wire Suction Hose

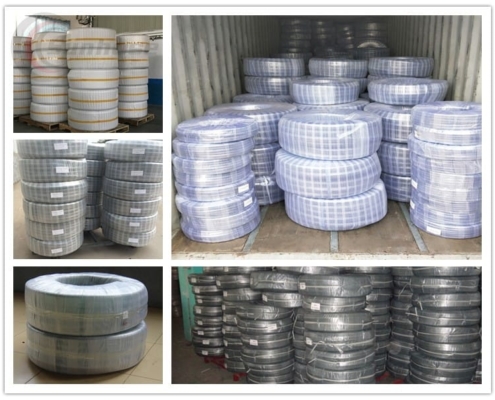

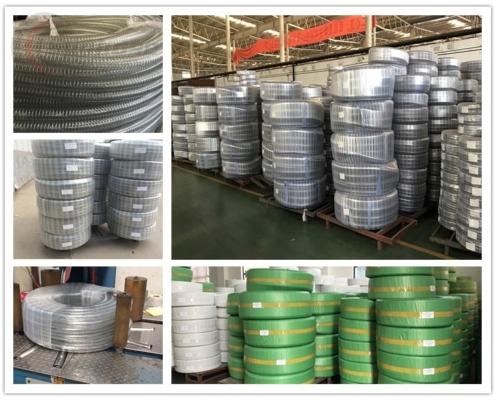

Package Style of PVC Spring Wire Suction Hose
